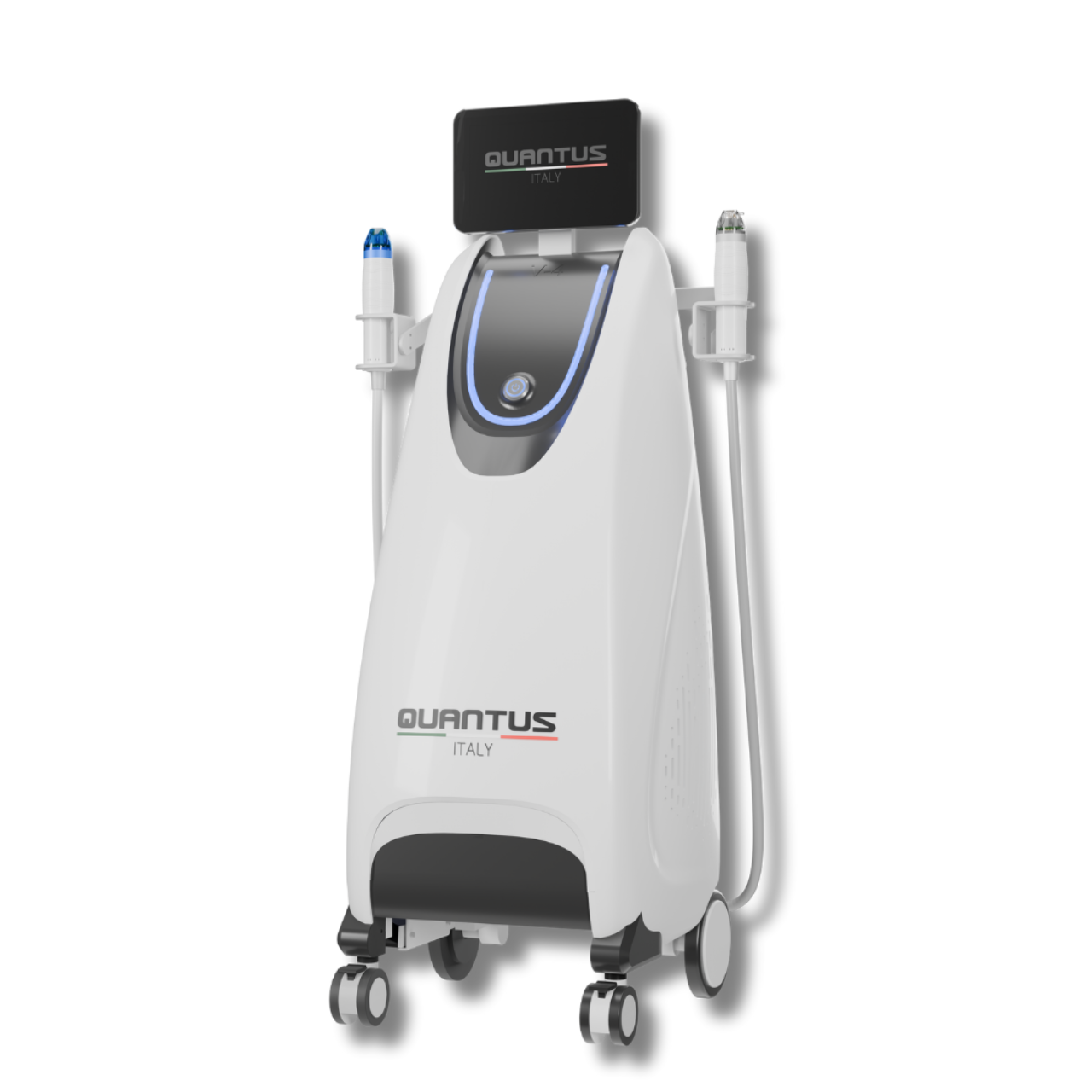

System introduction
The Micro-Needle Fractional RF System is the ideal technology for Skin lifting, tightening and rejuvenation by utilizing minimally invasive micro-Needles to deliver controlled RF energy directly into various depths of the Skin.
It has had outstanding success for all Skin types with very low risk of side effects and PIH – a key difference when compared to optical based treatments (IPL & Laser).
The RF energy is delivered through the focused tip of the micro-Needles, leading to far-less trauma to the surrounding epidermis. This leads to significantly decreased discomfort and down time for the patient compared to conventional fractional Lasers. Non-insulated micro-Needles are more effective and takes care of both epidermal and dermal problems without the need for additional superficial fractional RF treatments (SFRs).

Working Theory: Micro-Needle fractional Rf Machine combined vacuum adsorption technology, vacuum suction can be adjusted according to different patients demands, can help delivery energy more exactly into the treatment area, to get more effective wrinkle Removal, Skin whitening, acne Removal and stretch marks Removal.

Face treatment
Body Treatment
Non-Surgical Face Lifting
Scars
Skin Tightening
Neck Wrinkle
Skin Rejuvenation
Stretch Mark
Pore Reduction
Acne Scars

1.insulated Needles: equal therapy to epidermis and dermis layer
2. Stepping motor type: Needle inserts to Skin smoothly without shock
3. Gold plated Needles: high biocompatibility, suits metal allergy patient
4. Precise depth control: 0.1mm -4 mm in unit of 0.1mm
5. Safety Needle system:
-sterilized disposable Needle cartridges
-suction combined probe for better Skin contact
6. User-friendly handpiece
-3 different shape Needle cartridges suits to different treatment area

RF frequency

5MHz, bipolar

RF power

10-120

Needle cartridges

25pin Invasive

49 pin Invasive

49 pin non invasive

Needle Thickness

0.3mm

Needle Depth

0.1-4 mm(0.1 step)

Treatment Duration

0.1-3 s

Suction level

4 levels

Control Display

8.4 inch color touch screen

Voltage

AC 110V/220V, 50Hz/60Hz

Weight

50kg
